Description
Description:
Stand-on mowers are comfortable and fast, but particularly compact, agile and spacesaving. Your back and muscles will thank you for the upright working position.

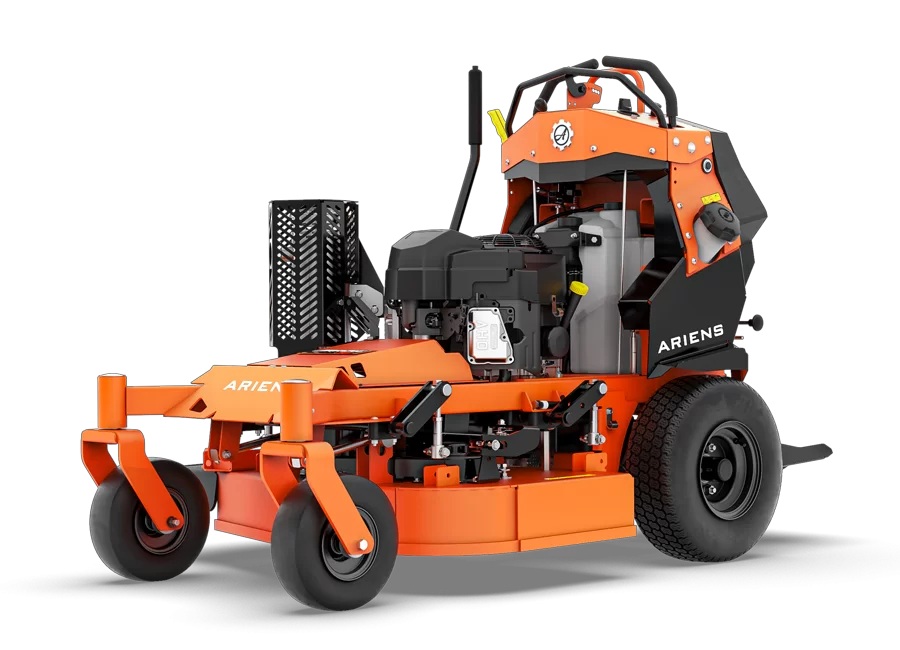

With its standard Kawasaki FS600 engine and 81 cm (32″) long mower deck, the ARROW 32 stand-on mower is the commercial choice for mowing in all areas.
Both the 81 cm (32″) and 91 cm (36″) mowing decks provide access to hard-to-reach mowing areas and make it easier to work in confined spaces. Mounting and dismounting takes just seconds.
Folding platform
The upright position of the driver on the platform offers the user a better view of the cutting deck than with a ride-on mower. Vibrations and impacts on the operator’s back are reduced – a working day is less stressful. The platform’s folding mechanism allows a quick transformation from a ‘stand-on’ to a ‘walk-behind’ mower, giving the user maximum versatility in narrow and low passages.
Adjustable speed control
Enables the driver to limit the maximum speed of the machine in confined working environments.
Operating elements
All functions are within easy reach and ergonomically controllable from the driver’s position.
Cutting height adjustment
Less effort required to raise the mower deck, a combination of foot pedal and hand lever and a vertical pin system make it easier to adjust the cutting height.
Premium engine
A Kawasaki FS600 V-Twin premium engine provides power, performance and fuel efficiency.
Lower center of gravity
The geometry and weight distribution ensure greater stability on inclines and a more pleasant feeling of safety for the rider.
Specifications:
| Model Number | 994302 |
| Engine | Kawasaki® FS600 V-Twin OHV |
| Engine Displacement | 603 cm³ |
| Drive System | Hydro-Gear® ZT-3100 Transaxles |
| Maximum engine Power | 16.6 kW / 22.2 hp at 3,600 rpm. |
| Fuel Capacity | 22.7 l |
| Max. Speed Forward / Backward | 12.8 km/h / 4.8 km/h ( 8 mph / 3 mph |
| Mulching Kit | optional |
| Deck Material | 4.6 mm sheet steel |
| Deck Construction | welded |
| Deck Lift System | foot pedal and hand lever |
| Number of blades | 2 |
| Spindle Material | Forged Aluminium |
| Spindles drive | V-belt |
| Spindle Clutch | Electric Ogura® |
| Cutting Width | 81 cm (32″) |
| Cutting Hights | 3.8 cm – 12.7 cm (1.5″ – 5.0″) |
| Cutting Positions | 15 |
| Front Wheels | 11 x 4.00-5 semi-pneumatic |
| Rear Wheels (inch) | 18 x 6.5 – 8 |
| Driver Platform |
Suspended, foldable
|
| Weight | 351 kg |
| Length | 160 cm, driver plattform folded; 190 (74.5″), driver plattform unfolded |
| Width | 114 cm w/ chute; 84 cm w/ mulch kit |
| Height | 122 cm |
| Limited Warranty Machine | 5 years / 1000 hours, no hour limit in the first 2 years |
